Crippa Linear CA 563

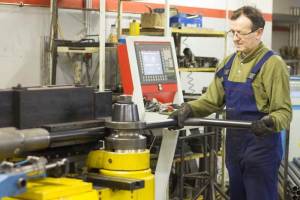

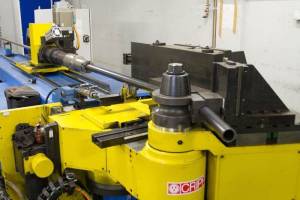

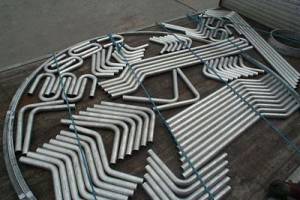

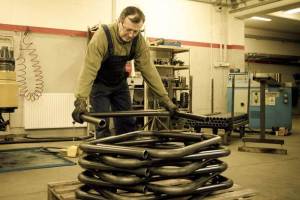

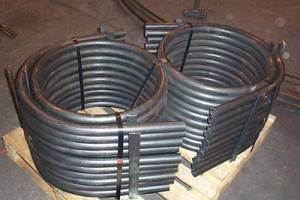

For CNC tube bending we use CRIPPA LINEAR CA 563 machine. It is suitable for use in the furniture, automotive as well as aerospace industries. This machine has five axes and is fully CNC controlled, and driven by digital electrical motors. Maximum diameter of tube bending is 60.3 mm and usable length of the tube is 5500 mm. The machine can also bend products, which have a variable angle with option of bending into helix.
| Technical information | |
|---|---|
| Maximum diameter of stainless steel pipe | Ø60.3 mm |
| Maximum diameter of steel pipes | Ø60.3 mm |
| Maximum bending radius | 250 mm |
| Usable length of pipe | 5500 mm |
| Maximum bending angle | 180+ degrees |
| Bending precision, C axis | +/- 0.01 degrees |
| Bending precision, Y axis | +/- 0.01 mm |
| Bending precision, B axis | +/- 0.01 degrees |
| Bending direction | right |
| List of tools | |
|---|---|
| Ø15 mm x 1.5 mm – 2.5 mm | bending radius 40 mm |
| Ø18 mm x 1.5 mm – 2.5 mm | bending radius 35 mm |
| Ø20 mm x 1.5 mm – 2.5 mm | bending radius 35 mm |
| Ø22 mm x 1.5 mm – 2.5 mm | bending radius 50 mm |
| Ø25 mm x 1.5 mm – 2.5 mm | bending radius 60 mm |
| Ø26.7 mm x 1.5 mm – 2.5 mm | bending radius 65 mm |
| Ø28 mm x 1.5 mm – 2.5 mm | bending radius 70 mm |
| Ø33.7 mm x 2 mm - 3 mm | bending radius 80 mm |
| Ø40 mm x 2 mm – 3 mm | bending radius 90 mm |
| Ø42.4 mm x 3 mm | bending radius 90 mm |
| Ø48.3 mm x 2 mm - 3 mm | bending radius 100 mm |
| Ø60.3 mm x 3 mm | bending radius 90 and 120 mm |
